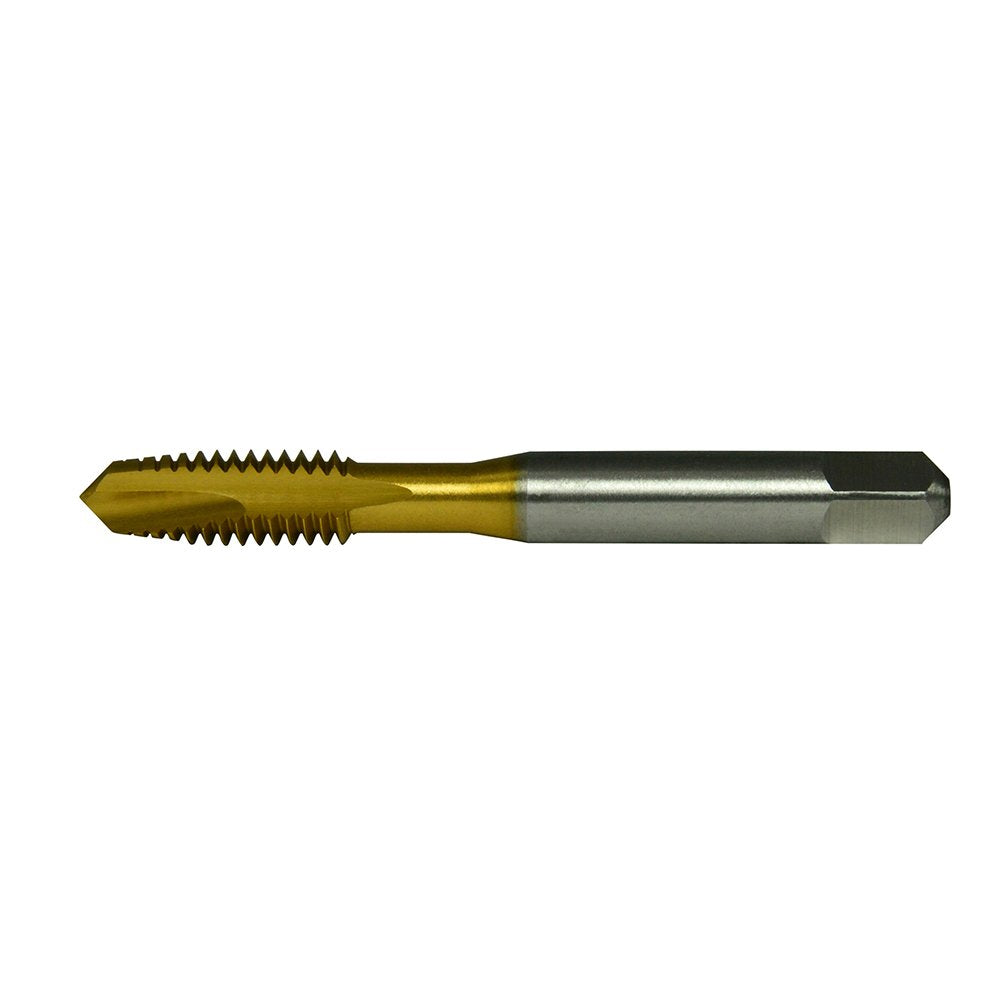

Vermont Tap & Die TN-3112 High-Speed Steel Ground Thread Spiral Point Tap, TiN Coated, Round With Flats, Plug Chamfer, 3/4"-10 Thread Size, H3 Pitch Diameter, 3 Flutes
Vermont Tap & Die TN-3112 High-Speed Steel Ground Thread Spiral Point Tap, TiN Coated, Round With Flats, Plug Chamfer, 3/4"-10 Thread Size, H3 Pitch Diameter, 3 Flutes
Key features
- Thread Form: UNC
- Thread Length: 2.0000-Inch
- Thread Length (Metric): 50.80mm
- Thread Pitch: 10
- Thread Size: 3/4-Inch; Thread Tolerance: 2B
Flute Type: Straight. Hand of Cut: Right. Material: HSS. Number of Flutes: 3, Shank Configuration: Straight with Square. Surface Condition: TiN, Tap Blank Construction: USCTI Table 302A, Tap Chamfer: Plug, Tap Construction: Standard, Tap Ground Threads: Yes, Tap Interrupted Thread: No, Tap Limit: H3, Tap Style: Spiral Point Tap, Tap Truncated Threads: No, Tap Type: Machine Tap. Tool Size: 3/4 - Inch - 10 UNC. Diameter: 0.7500-Inch. Overall Length: 4.2500-Inch, Overall Length (Metric): 107.95mm, Shank Size: 0.5900-Inch, Shank Size (Metric): 14.99mm, Shank Square Length: 0.6875-Inch, Shank Square Length (Metric): 17.46mm, Shank Square Size: 0.4420-Inch, Shank Square Size (Metric): 11.23mm. Depth of Cut: 2xD. Material Application:- M: Stainless Steel, P: Steel. Operation Type: Thru Hole, Tap Spiral Point: Yes. Thread Creation: Thread Cutting.
