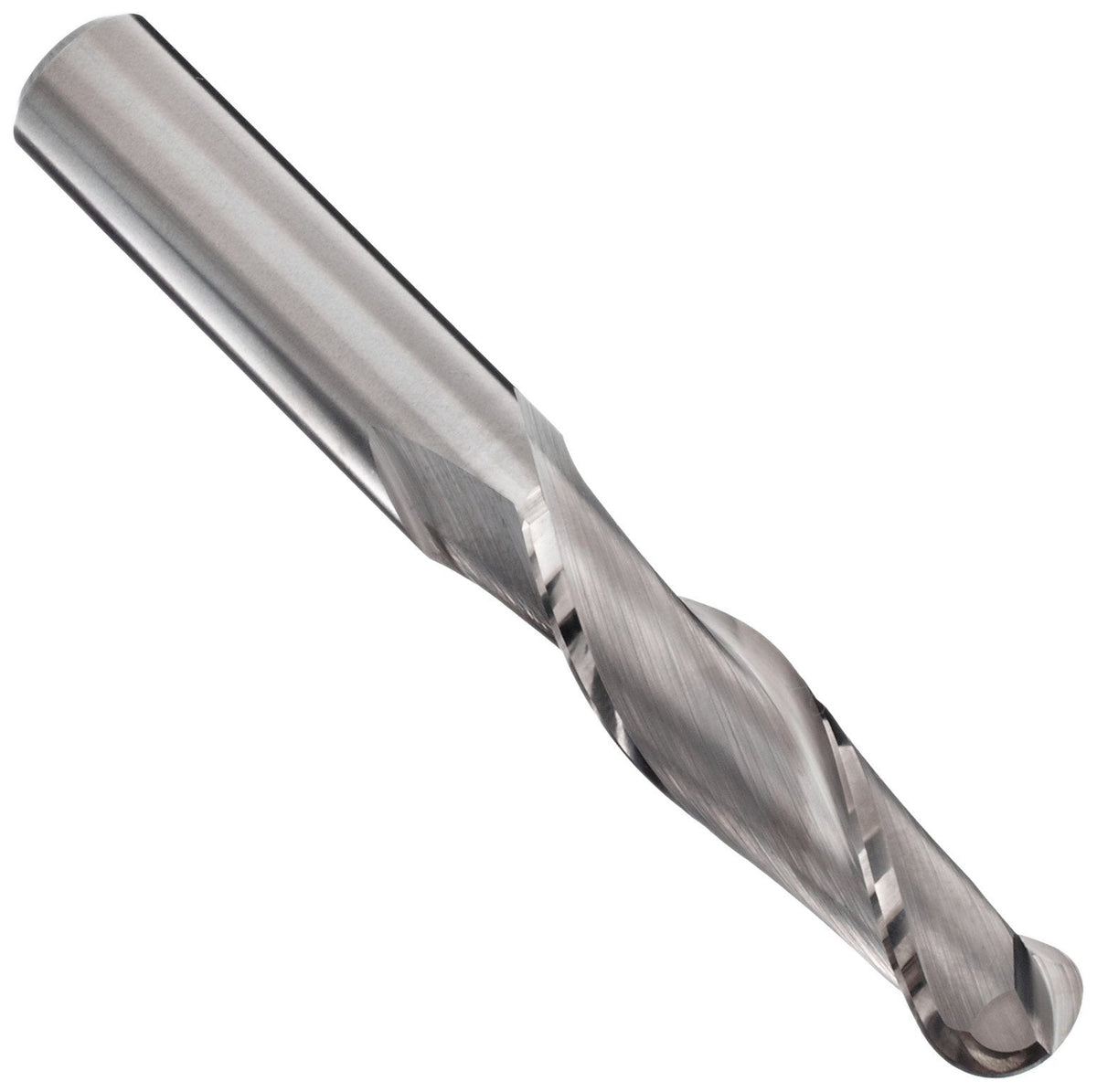

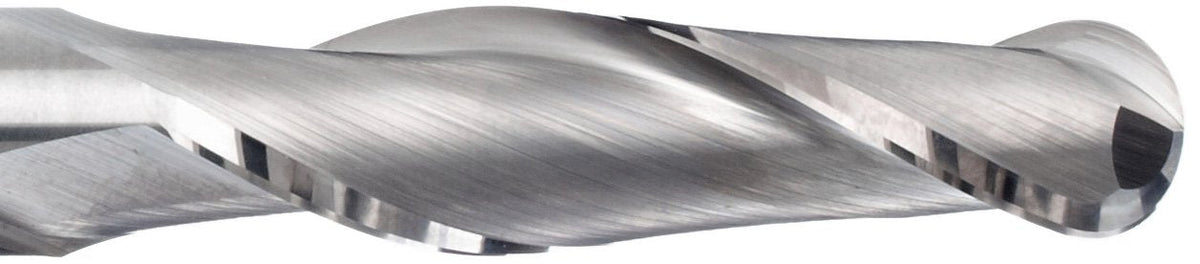

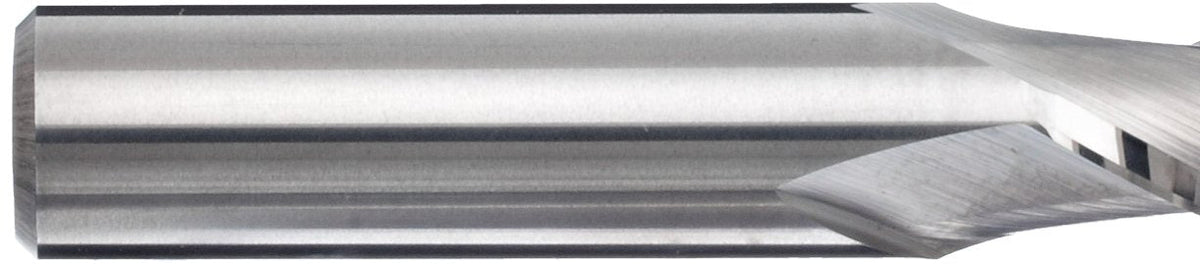

YG-1 - 50558 E5014 Carbide Ball Nose End Mill, Long Reach, Uncoated (Bright) Finish, 30 Deg Helix, 2 Flutes, 2.25" Overall Length, 0.125" Cutting Diameter, 0.125" Shank Diameter

Key features

• Suitable for machining on hardened and high-alloy steel, steel casting, chill casting, malleable cast iron, chromium-nickel steel, brass, copper, aluminum with a high percentage of silicon, and abrasive plastic
• Long-length end mills have longer cutting edges and can make deeper cuts than standard-length end mills
• Two flutes offer better chip-carrying capacity than end mills with more flutes, enhancing the tool’s ability to remove material
• Carbide can run at higher speeds than high-speed or cobalt steel, resisting wear and high cutting temperatures
• Ball nose end mills (also called ball end) create contoured surfaces­­­

The YG-1 E5014 uncoated carbide long-length ball nose end mill has two flutes and a 30-degree helix angle for machining on hardened and high-alloy steel, steel casting, chill casting, malleable cast iron, chromium-nickel steel, brass, copper, aluminum with a high percentage of silicon, and abrasive plastic. Long-length end mills have longer cutting edges than standard-length end mills for applications with a high depth of cut. (Feed should be reduced by around 50%.) The two flutes have better chip-carrying capacity than end mills with more flutes while offering additional support when the tool goes deep into the material in applications with a high depth of cut. The tool’s ball nose creates contoured surfaces where sharp corners are not required. The 30-degree helix angle supports general-purpose applications. It balances lower angles’ strong cutting edge for difficult-to-machine materials with higher angles’ increased cutting action. The center-cutting design has cutting teeth at the end of the tool, so it can be fed into the workpiece like a drill bit. Carbide is harder than high-speed or cobalt steel, making it more wear resistant at high speeds and providing longer tool life. W
