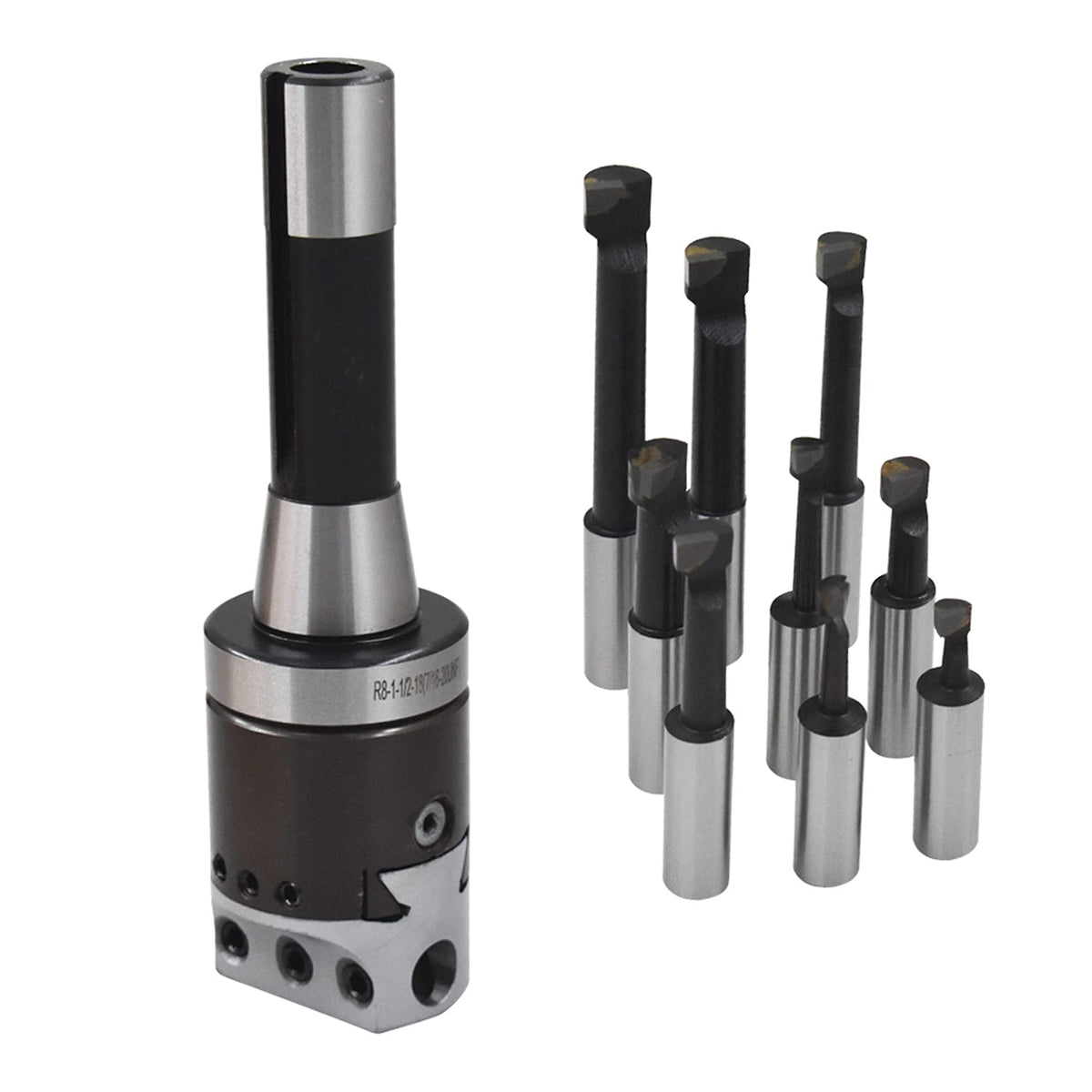

TINVHY 9-Pack Set 2 Boring Head R8 Shank 1/2 Carbide Boring Bar Set

Key features

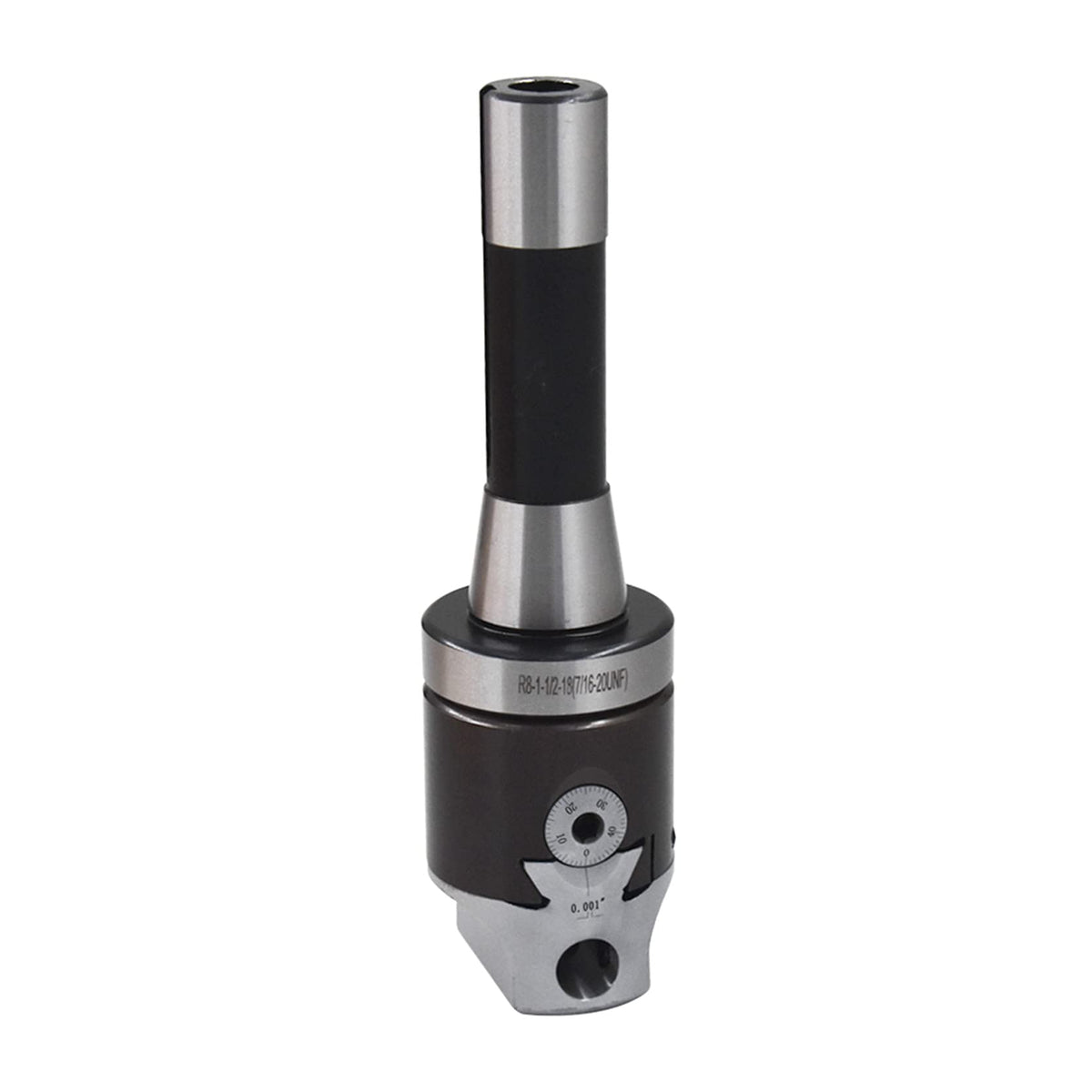

• 2 Boring Head with R8 Shank; Head size: 2 ; Boring Bar Hole: 1/2 ; Cross Hole Dia: 1/2 ; Maximum Offset: 5/8 .
• Tool set made of high quality steel with great match of hardness and toughness, thus prolongs its service life.
• A micrometer lead screw provides 0.0001 direct reading accuracy and ease of adjusting.
• Double bar holder permits a greater boring range with out an extreme offset condition.

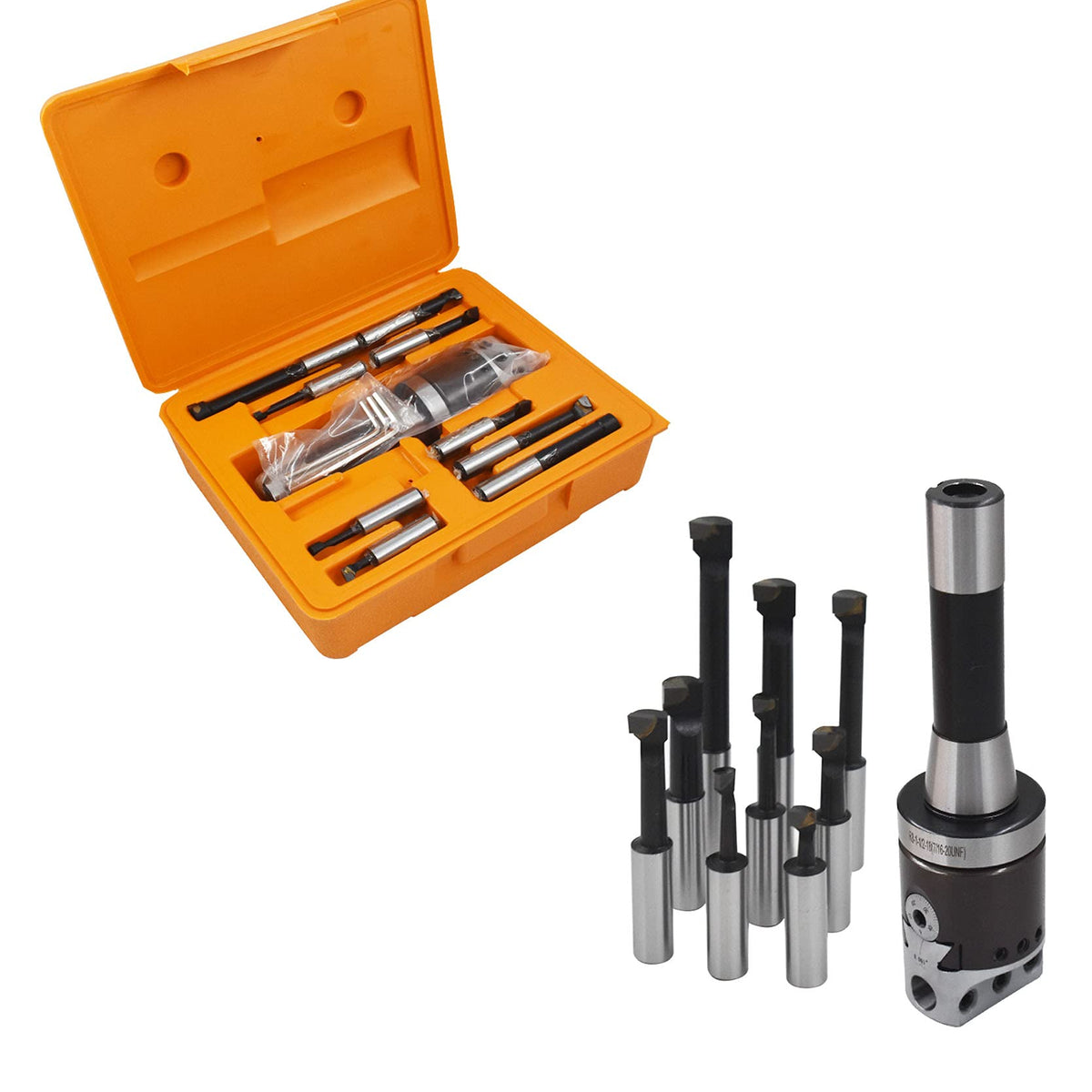

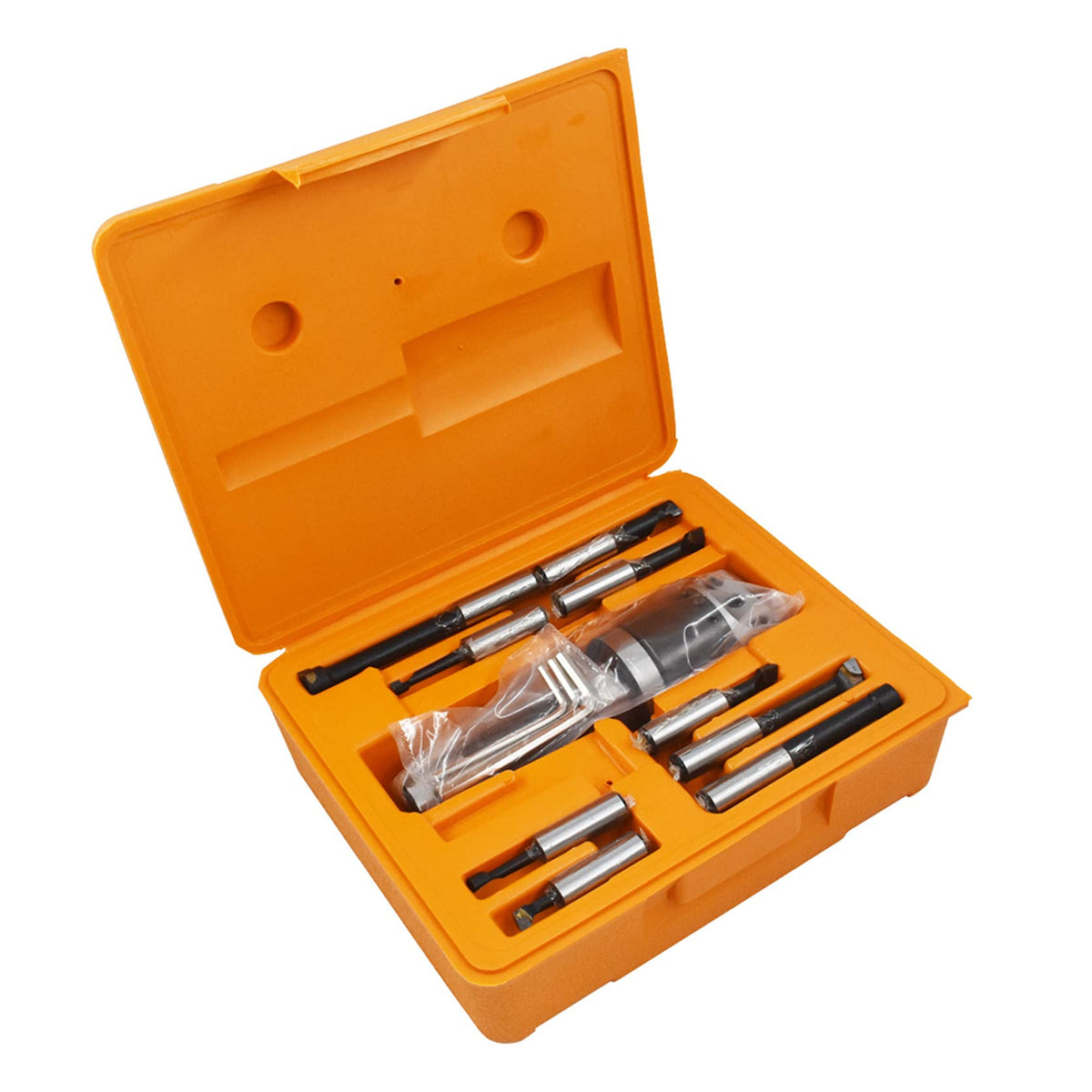

• Package includes: 1 x 2 Boring Head, 1x R8 Shank, 9 x 1/2 Carbide Boring Bar, 3 x Allen Wrench.

2" Boring Head R8 Shank Specification: Head size: 2" Boring bar Hole: 1/2" Cross Hole Dia: 1/2" Maximum Off Set: 5/8" Thread: 7/16-20 UNF Graduations: 0.001/0-50 Center Distance bt 2 bottom hole: 0.60" When the direction of the dial is reversed, the backlash between the gear train is listed below. Overall Length --- Bore Depth --- Min. Bore 2-1/4" -------- 3/4" --------- 5/16" 2-5/8" -------- 1-1/8" ------ 5/16" 3" -------------- 1-1/2" ------- 5/16" 2-5/8" ------- 1-1/8" ------- 7/16" 3-3/16" ----- 1-11/16" --- 7/16" 3-3/4" ------- 2-1/4" ------- 7/16" 3" ------------- 1-1/2" ------- 9/16" 3-3/4" ------- 2-1/4" ------- 9/16" 4-1/2" ------- 3" -------------- 9/16" Package Includes: 1 x 2" Boring Head 1 x R8 Shank 9 x 1/2" Carbide Boring Bar 3 x Allen Wrench

Free shipping included. 30-day hassle-free returns.
