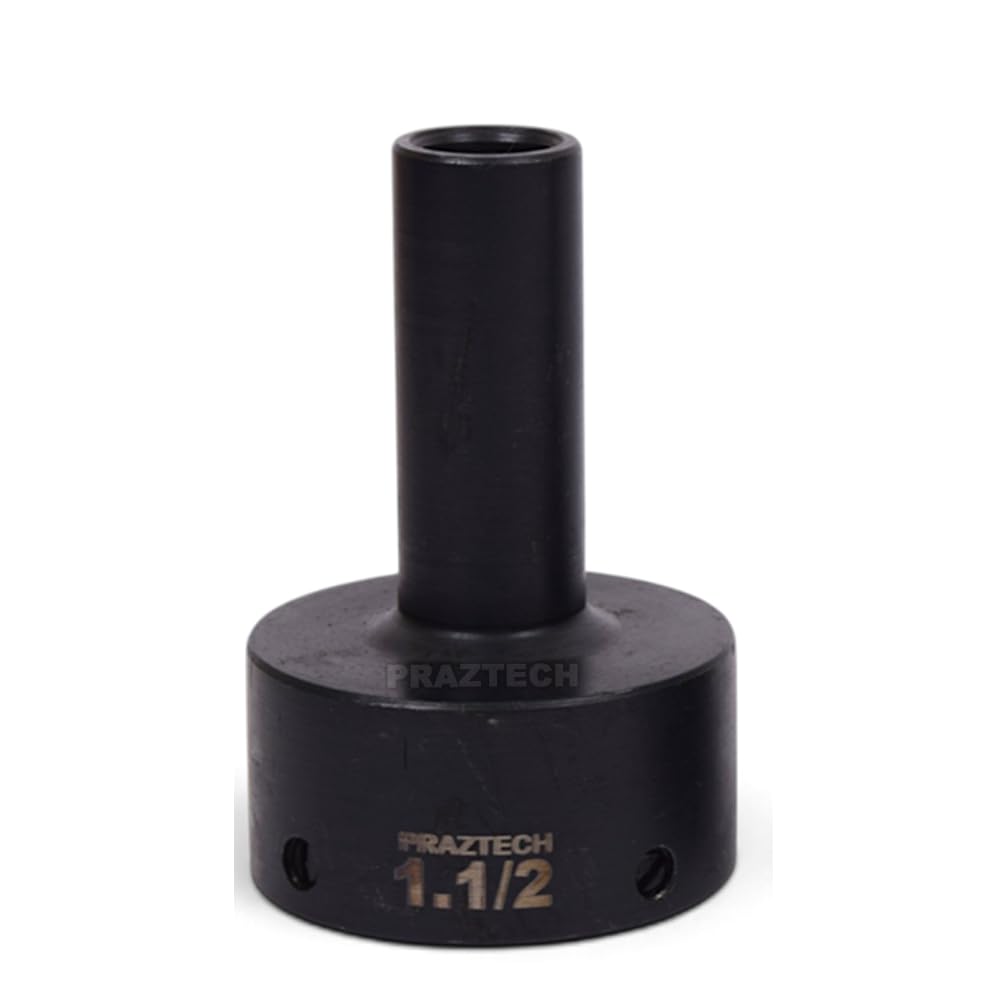

Tailstock Floating Round Die Holder 1-1/2" Die holder with 3/4" shank

Key features

• DIE SIZES: Accommodates round dies in 13/16", 1", and 1-1/2" sizes to handle multiple threading applications.
• SHANK SIZES: 13/16", 1" has 1/2" shank and 1-1/2" has 3/4" shank size — for compatibility with a variety of lathe tailstocks.

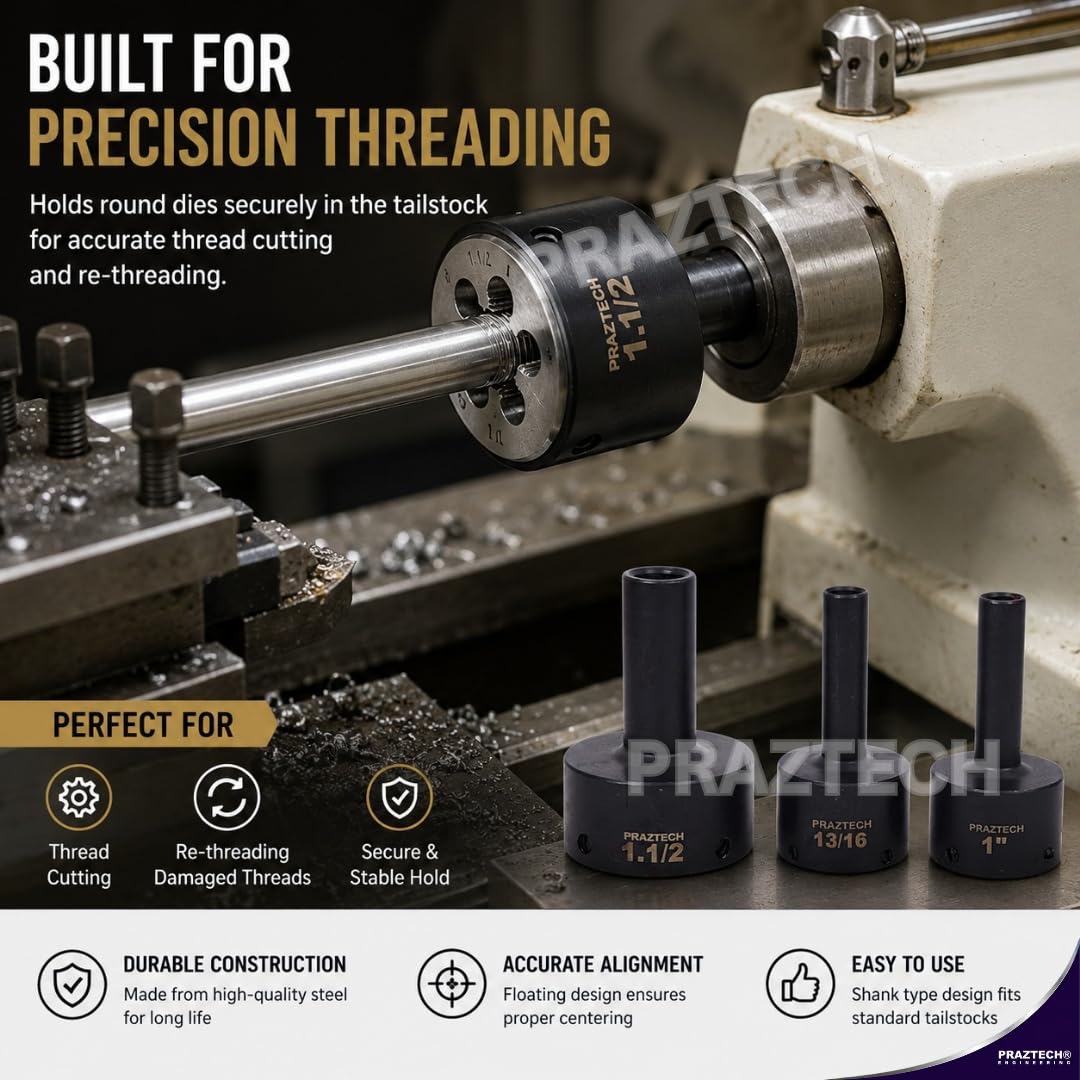

• EASY TO USE – Mount the holder in the tailstock and rotate the workpiece slowly in the headstock while feeding the tailstock by hand. Reverse the die after reaching the required thread length. For threading close to a shoulder, stop before the shoulder and complete the final turns manually for greater control.
• PREMIUM STEEL CONSTRUCTION – Precision-machined from a single solid piece of high-quality steel for maximum strength, rigidity, and long service life. Finished with a durable black oxide coating to resist corrosion and wear.
• CHIP CLEARANCE DESIGN – Features a counterbored recess behind the die to collect chips during threading, while the through-bored shank allows threading of longer workpieces without obstruction.
• PRECISION & RELIABILITY – The floating mechanism helps compensate for minor alignment errors between the tailstock and workpiece, resulting in cleaner threads, reduced die wear, and improved machining accuracy.
• VERSATILE APPLICATION – Ideal for short-run threading of shafts, rods, and similar workpieces. Suitable for use on lathes, milling machines, and tapping machines. The floating design ensures smooth die alignment for accurate thread cutting.
• Tailstock Floating Round Die Holder Set – 3 Pieces (Shank Type) This 3-piece Tailstock Floating Round Die Holder Set is designed for accurate and smooth threading operations on lathes, milling machines, and tapping machines. The floating design helps maintain die alignment, producing cleaner, more precise threads while reducing the risk of cross-threading.

This Tailstock Floating Round Die Holder Set is a precision machining tool designed to make lathe threading operations smoother and more accurate. 3 pieces, offering versatility across a range of threading tasks. It accommodates two shank sizes — 1/2" and 3/4" — and supports die sizes of 13/16", 1", and 1-1/2", making it a well-rounded addition to any machinist's toolkit. The floating design allows the die holder to self-align during threading, helping to reduce the risk of cross-threading and improving the quality of finished threads. Built for use with lathes, these round shank die holders are crafted with precision to ensure a secure, reliable fit. Whether you are working on production runs or one-off custom parts, this set delivers consistent performance. Ideal for both professional machinists and serious hobbyists looking to expand their threading capabilities.
