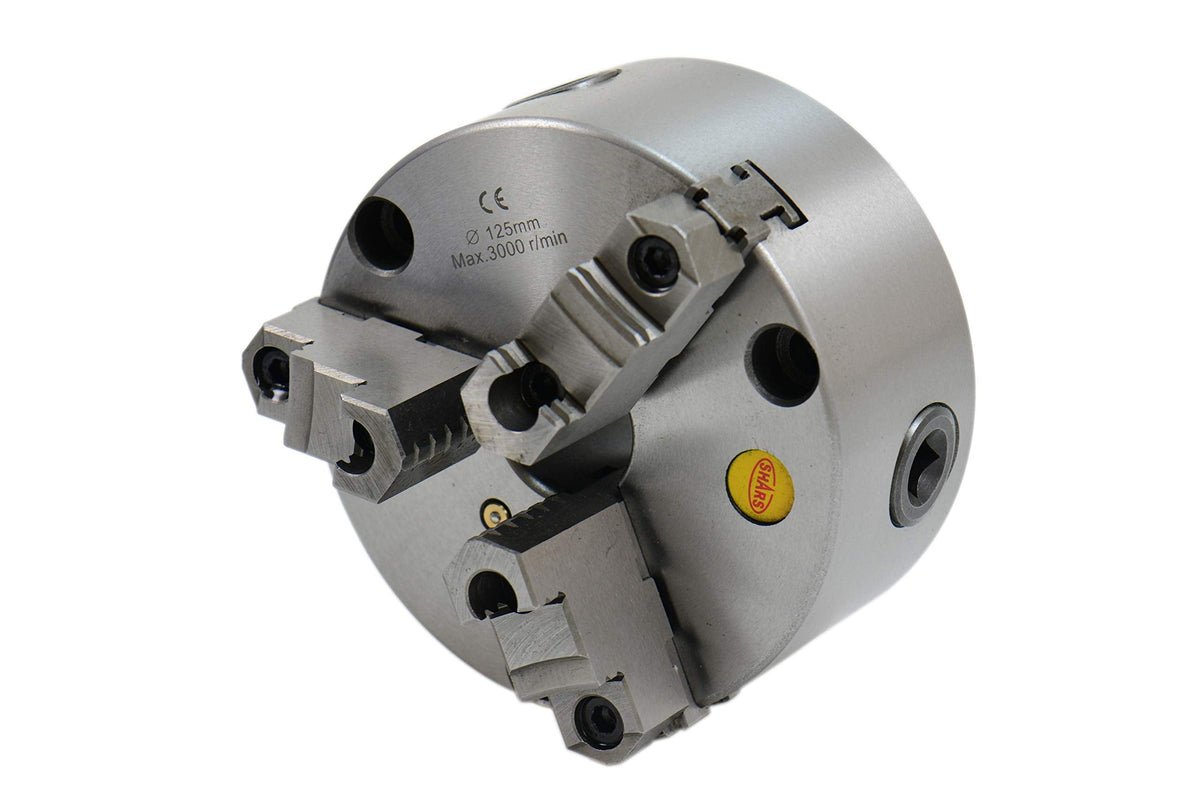

Shars 5" 3 Jaw Front Mounting Self Centering Scroll Lathe Chuck with 2 Piece Reversible Jaws 202-7754 L[

Key features

• A matching back plate (sold separately) would need to be machined on the face and hub OD in order to fit this chuck. For detailed information, please look for the Shars back plate machining guide.
• Chuck Diameter: 5"; Through Hole Size: 1.181"; Bolt Circle Diameter: 4.252"; Chuck Thickness: 2.283"; TIR: 0.003"; Maximum Speed RPM: 3000; Maximum Torque NM: 160; Mounting: front mounting; Reversible Jaws: Yes; Number of Jaws: 3
• Two piece jaw configuration with a master jaw and a top reversible jaw in American Standard tongue and groove
• Before assembling the jaw to its designated chuck the jaw's finishing machining operation are done on closed tolerance CNC machine
• Internal Jaw~ Clamping Range: 0.098-1.574", Jamming Range: 1.496-4.921"

Free shipping included. 30-day hassle-free returns.
