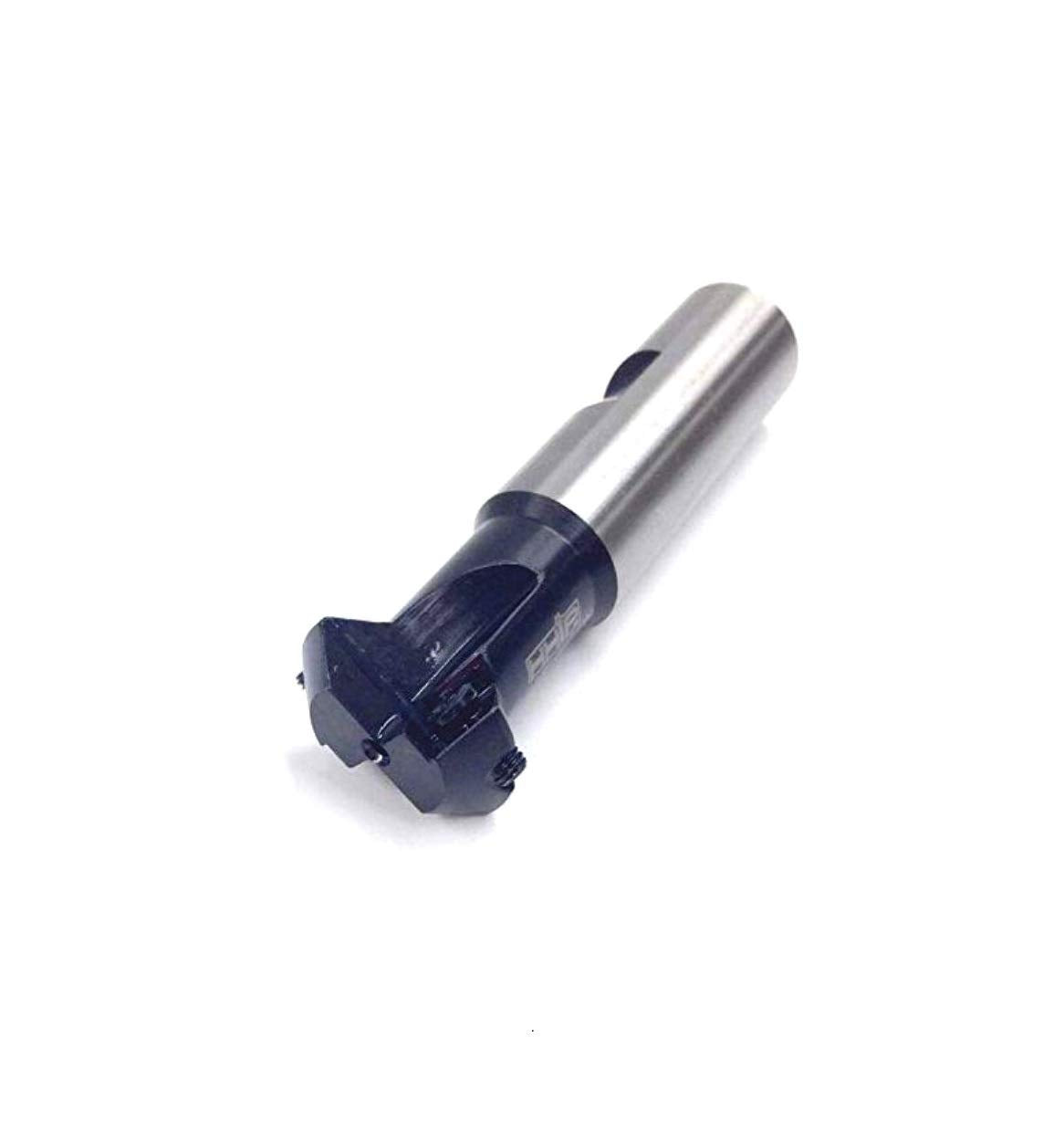

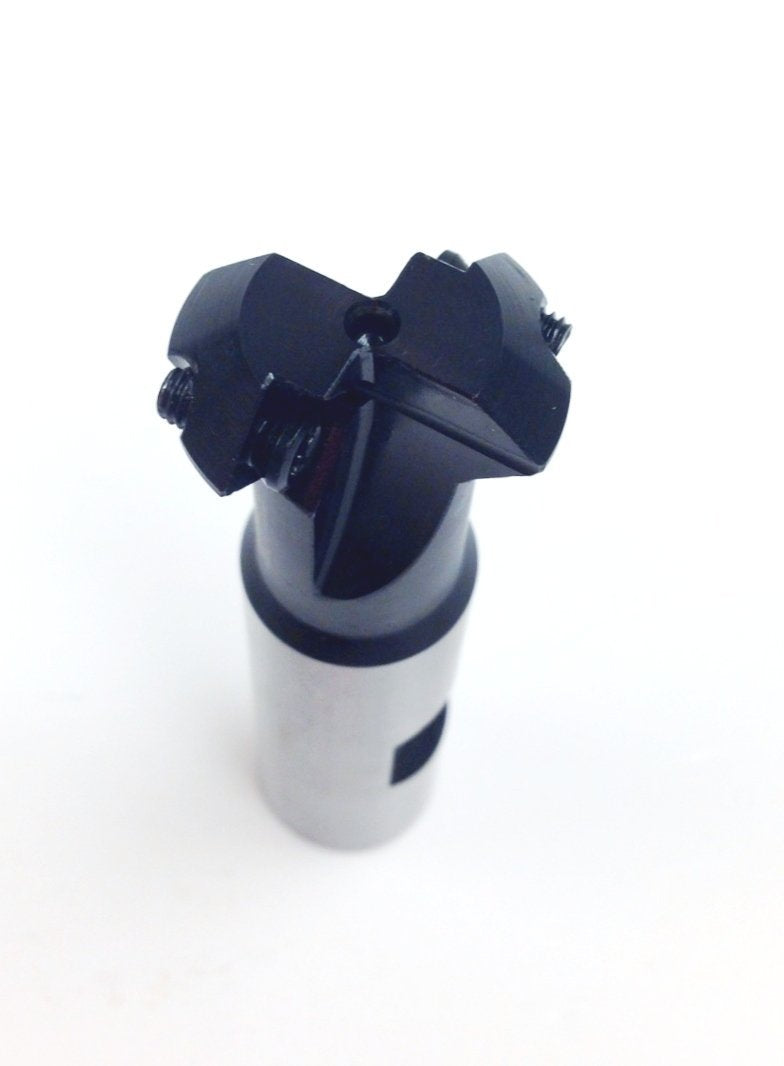

HHIP 2076-0001 45 Degree Carbide 1 X 3/4 Shank 2-Insert Indexable Chamfering End Mill

Key features

• Indexable inserts eliminate costly resharpening. Improved Chamfering and Deburring - Design features carbide strip geometries that provide excellent chamfering surfaces, producing clean, smooth edges and reducing burr formation.
• 45-degree chamfering design creates clean, accurate edge breaks. Long Tool Life - Carbide is extremely hard and wear-resistant, allowing the insert to maintain cutting performance for many more operations before replacement reducing downtime and tooling costs over time.
• No Regrinding Required - Carbide indexable countersinks can be rotated to expose a fresh cutting edge when one wears eliminating the need for regrinding.
• Versatility in Applications - Carbide indexable countersinks are suitable for both hand and machine operations, and can handle a range of materials including metals, plastics, and composites. Straight shank fits a wide range of milling machines.

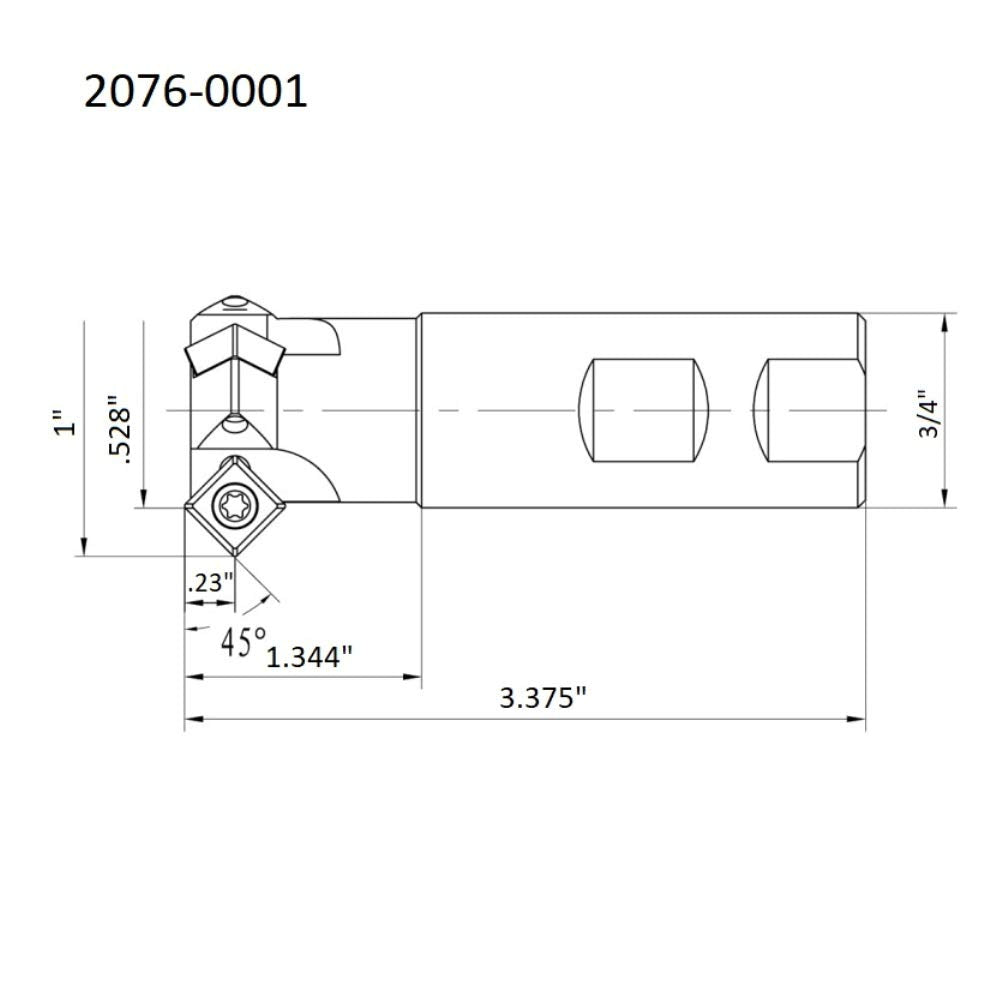

• Minimum cutting diameter is 0.528". Maximum cutting diameter is 1". Overall length is 3-3/8". Insert screw size is M4 X 10. The inserts that fit this tool are our 6018-3251 for the SPMT 32.51 TiN Coated or 6018-3252 for the SPMT 32.52 TiN Coated. This tool takes 2 inserts. The carbide inserts are not included.

HHIP 45 Degree Carbide 1 X 3/4 Shank 2-Insert Indexable Chamfering End Mill Indexable inserts eliminate costly resharpening. Improved Chamfering and Deburring - Design features carbide strip geometries that provide excellent chamfering surfaces, producing clean, smooth edges and reducing burr formation. 45-degree chamfering design creates clean, accurate edge breaks. Long Tool Life - Carbide is extremely hard and wear-resistant, allowing the insert to maintain cutting performance for many more operations before replacement reducing downtime and tooling costs over time. No Regrinding Required - Carbide indexable countersinks can be rotated to expose a fresh cutting edge when one wears eliminating the need for regrinding. Versatility in Applications - Carbide indexable countersinks are suitable for both hand and machine operations, and can handle a range of materials including metals, plastics, and composites. Straight shank fits a wide range of milling machines. Minimum cutting diameter is 0.528". Maximum cutting diameter is 1". Overall length is 3-3/8". Insert screw size is M4 X 10. This tool takes 2 inserts. The inserts that fit this tool are our 6018-3251 for the SPMT 32.51 TiN C

Free shipping included. 30-day hassle-free returns.
