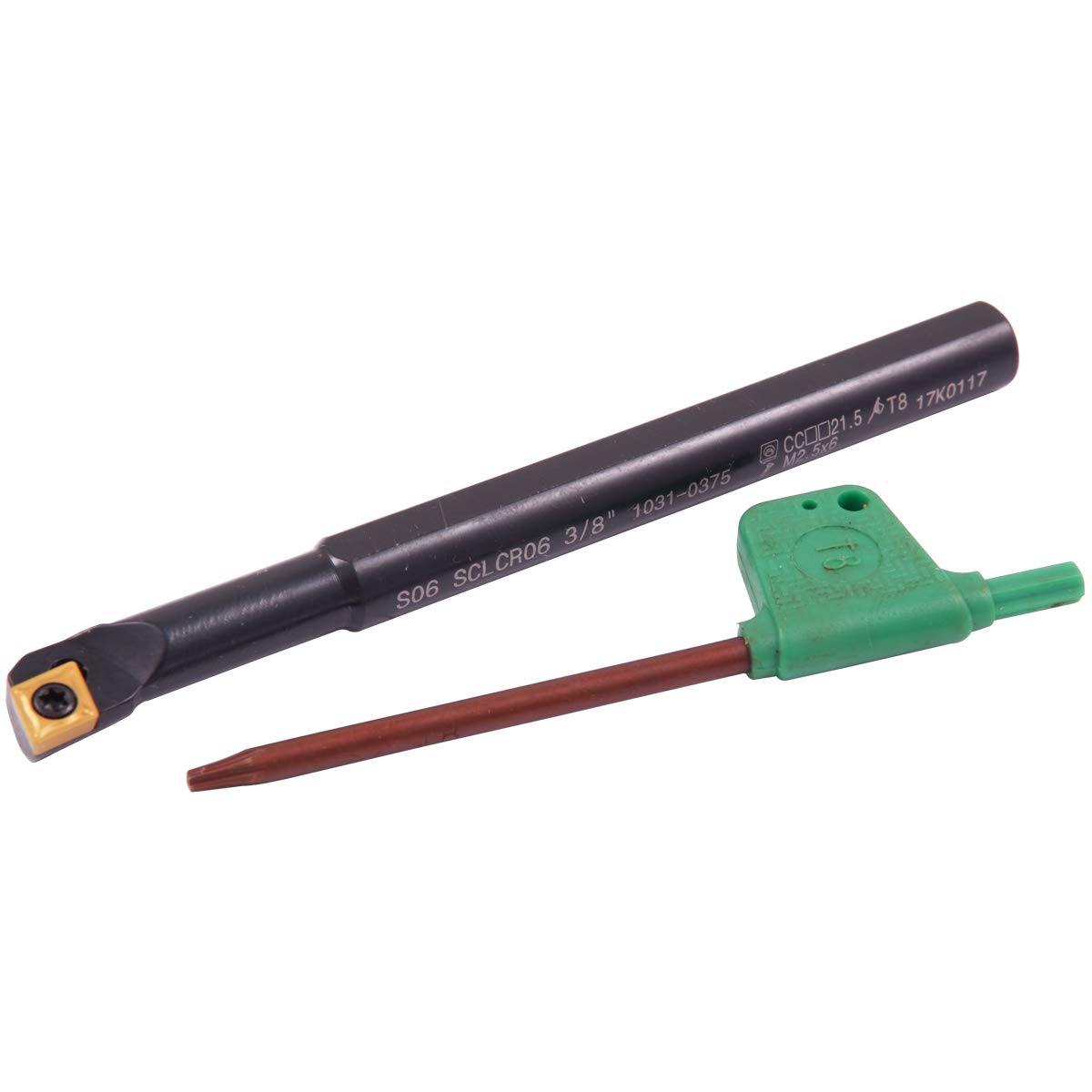

HHIP 1031-0375 S06 SCLCR06 Mini Indexable Boring Bar

Key features

• Boring Bar Style S06 SCLCR06; Shank 3/8"; Minimum Bore .472"; Length 4.33"
• Neck Diameter .315"; Neck Length 1.26"; Use Insert CCMT-21.5; Screw M2.5x6
• Torx T-8
• Use CCMT Inserts, 7 degrees Relief
• Torx T-8

HHIP S06 SCLCR06 Mini Indexable Boring Bar Indexable Insert Design (CCMT 21.5) – Uses replaceable carbide inserts for quick changeovers, reducing downtime and tooling cost. Mini Boring Capability – Designed for small hole diameters, allowing precision machining in tight internal spaces. Screw-Down Insert Clamping – Secure insert retention improves stability and minimizes movement during cutting. 7° Positive Relief Geometry – Reduces cutting pressure for smoother finishes and improved chip evacuation. Solid Steel Shank Construction – Provides rigidity and vibration resistance for better accuracy and longer tool life. Ideal for machinists working with tight tolerances in confined areas. Shank size is 3/8". Minimum bore is .472". Overall length is 4.33". Neck diameter is .315". Neck length is 1.26". The insert screw is M2.5 X 6 (#2100-0070). Torx wrench is a T-8 (#2100-0092).

Free shipping included. 30-day hassle-free returns.
