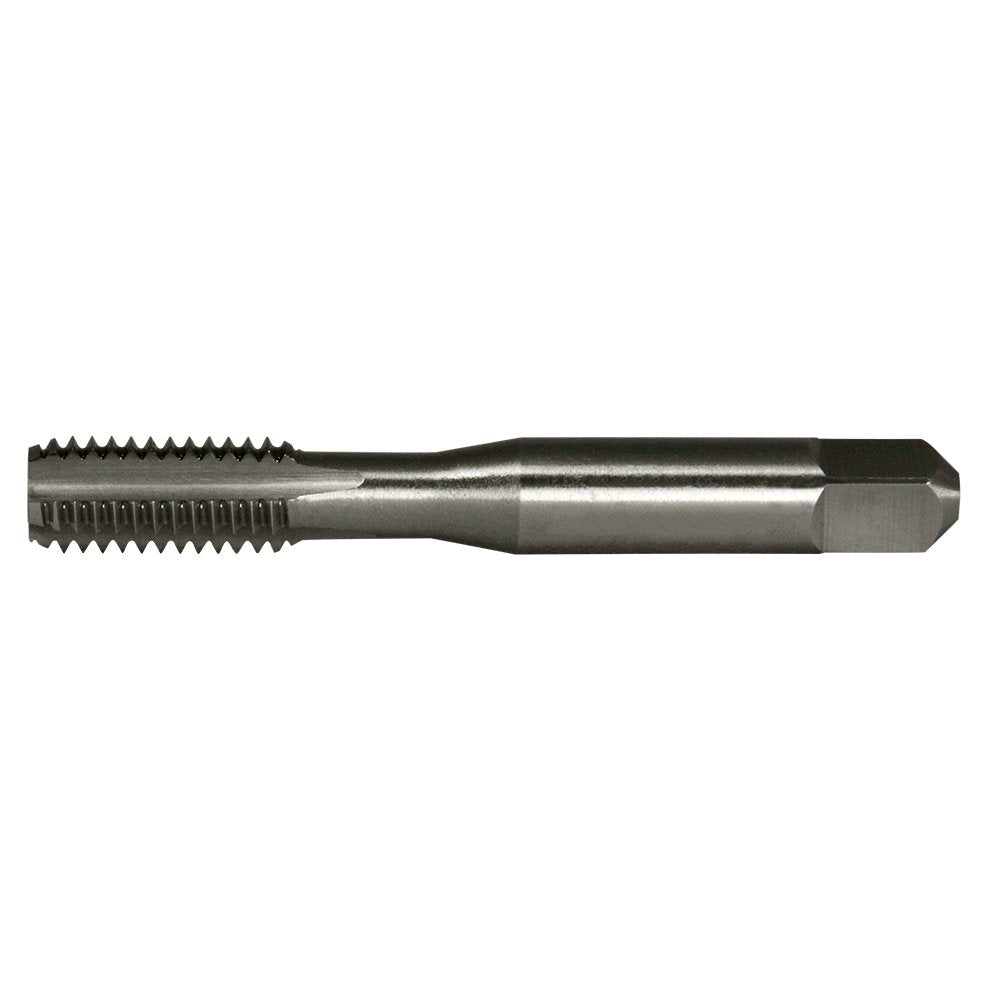

Greenfield Threading 308572 GT/VTD 1-1/4-12NF HTGP H4 6FL GP Taper Hand Tap

Key features

• Thread form: unthread length: 2.5625-Inch
• Thread length (metric): 65.09Mm
• Thread pitch: 12
• Thread size: 1-1/4 - inch, thread tolerance: 2B
• Thread pitch: 12
• Thread form: unfit
• Thread length (metric): 65.09Mm

Flute Type: Straight. Hand of Cut: Right. Material: HSS. Number of Flutes: 6, Shank Configuration: Straight with Square. Surface Condition: Bright, Tap Blank Construction: USCTI Table 302A, Tap Chamfer: Taper, Tap Construction: Standard, Tap Ground Threads: Yes, Tap Interrupted Thread: No, Tap Limit: H4, Tap Spiral Point: No, Tap Style: Straight Flute Hand Tap, Tap Truncated Threads: No, Tap Type: Hand Tap. Tool Size: 1-1/4 - 12 UNF. Diameter: 1.2500-Inch. Overall Length: 5.7500-Inch, Overall Length (Metric): 146.05mm, Shank Size: 1.0210-Inch, Shank Size (Metric): 25.93mm, Shank Square Length: 1.0000-Inch, Shank Square Length (Metric): 25.40mm, Shank Square Size: 0.7660-Inch, Shank Square Size (Metric): 19.46mm. Depth of Cut: 2xD. Material Application:- K: Cast Iron, M: Stainless Steel, N: Non-ferrous Metal, P: Steel. Operation Type: Blind Hole.
