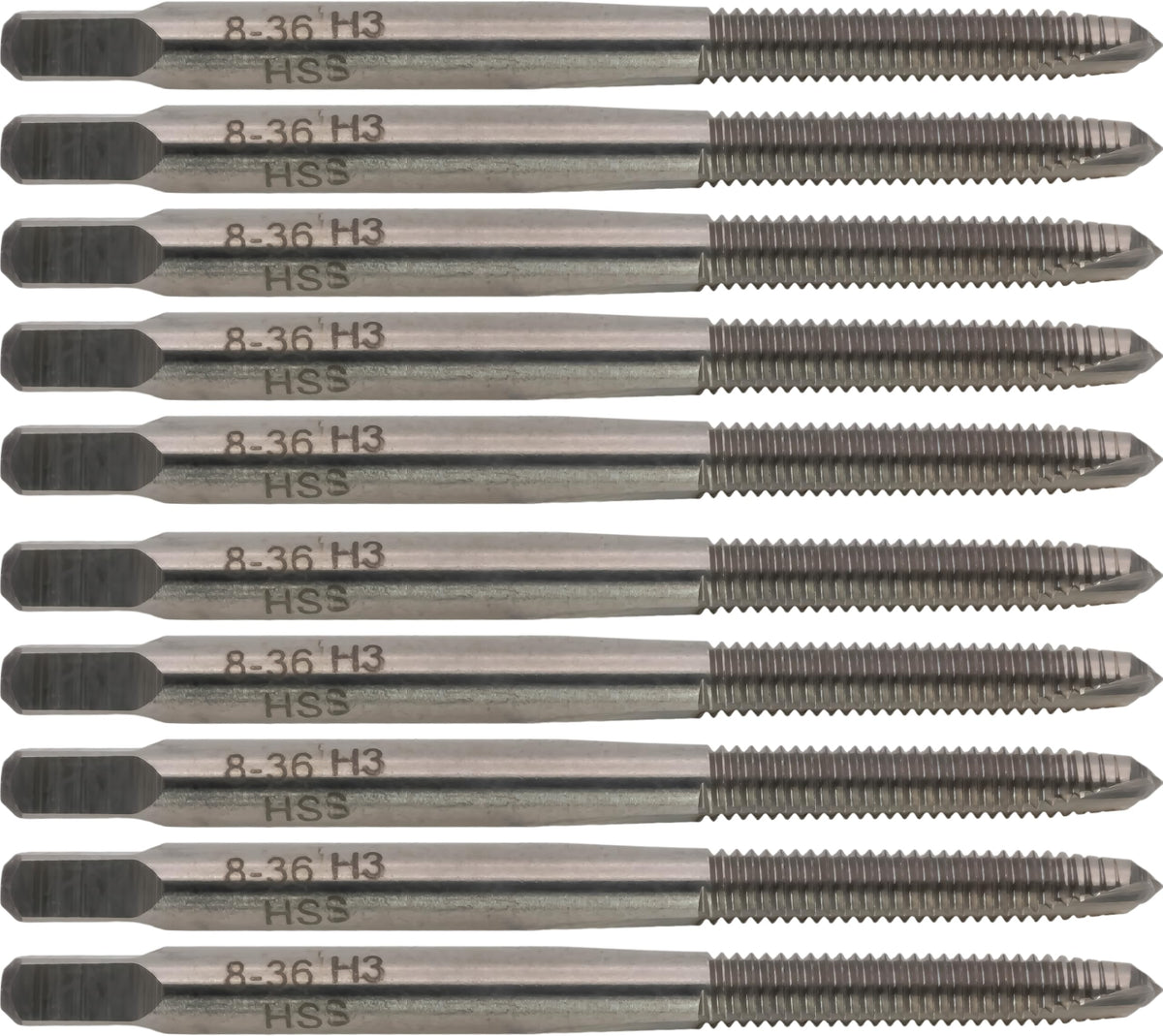

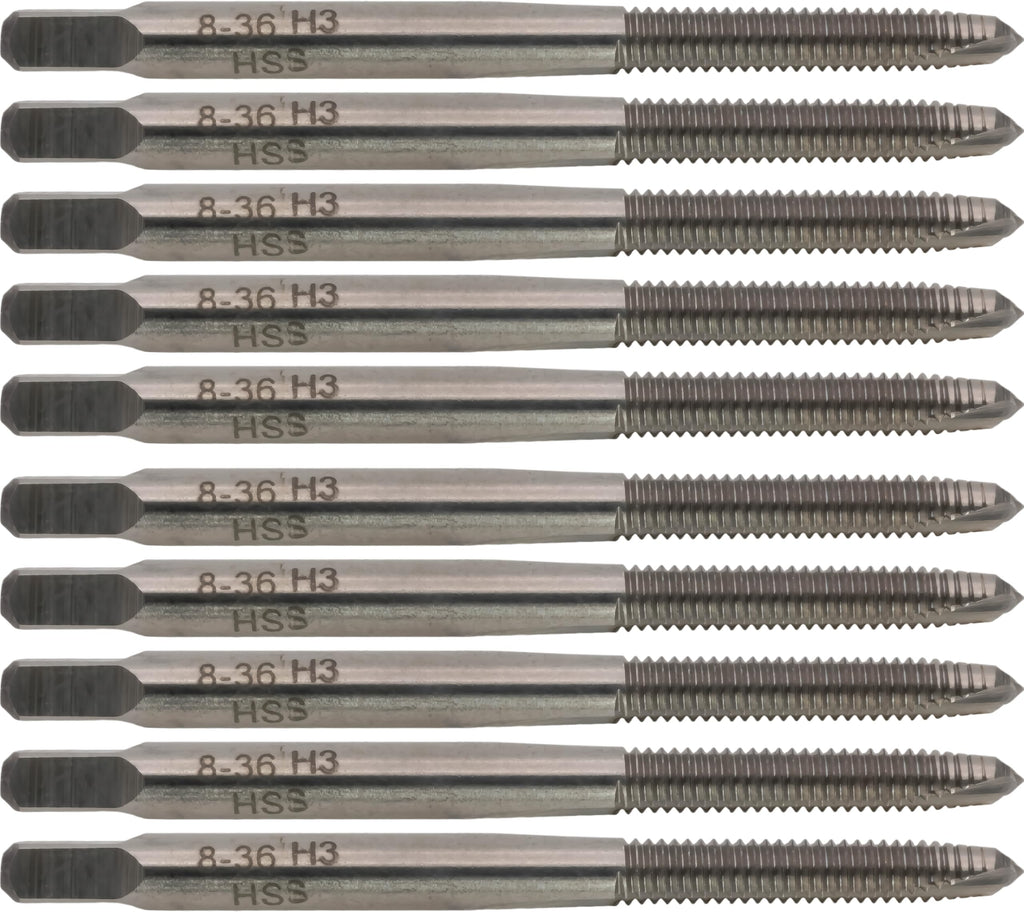

CME HSS Spiral Point Plug Taps, 8-36 UNF, H3, 2 Fl, 10 pcs

Key features

• 8-36 Thread Size; 13/16" Thread Length; 2 Flutes
• 0.167" Shank Diameter; 0.131" Square Size
• M2 high-speed steel offers an excellent combination of toughness, wear resistance, and red hardness
• Bright finish; Reduced edge buildup when machining soft materials such as aluminum and copper
• Individually packaged in solid plastic tubes; 10 pieces per order

The CME Spiral Point Tap cuts 8-36 UNF internal threads in through holes, where the spiral point geometry pushes chips ahead of the tap instead of back up the flutes. It is made from M2 High-Speed Steel with a Uncoated finish, and is ground with a Plug chamfer, 2 straight flutes, and a Right Hand thread to the H3 pitch diameter limit. Dimensions are 2-3/16" overall length, 13/16" thread length, 0.167" shank diameter and 0.131" square. Supplied 10 pieces per order.
