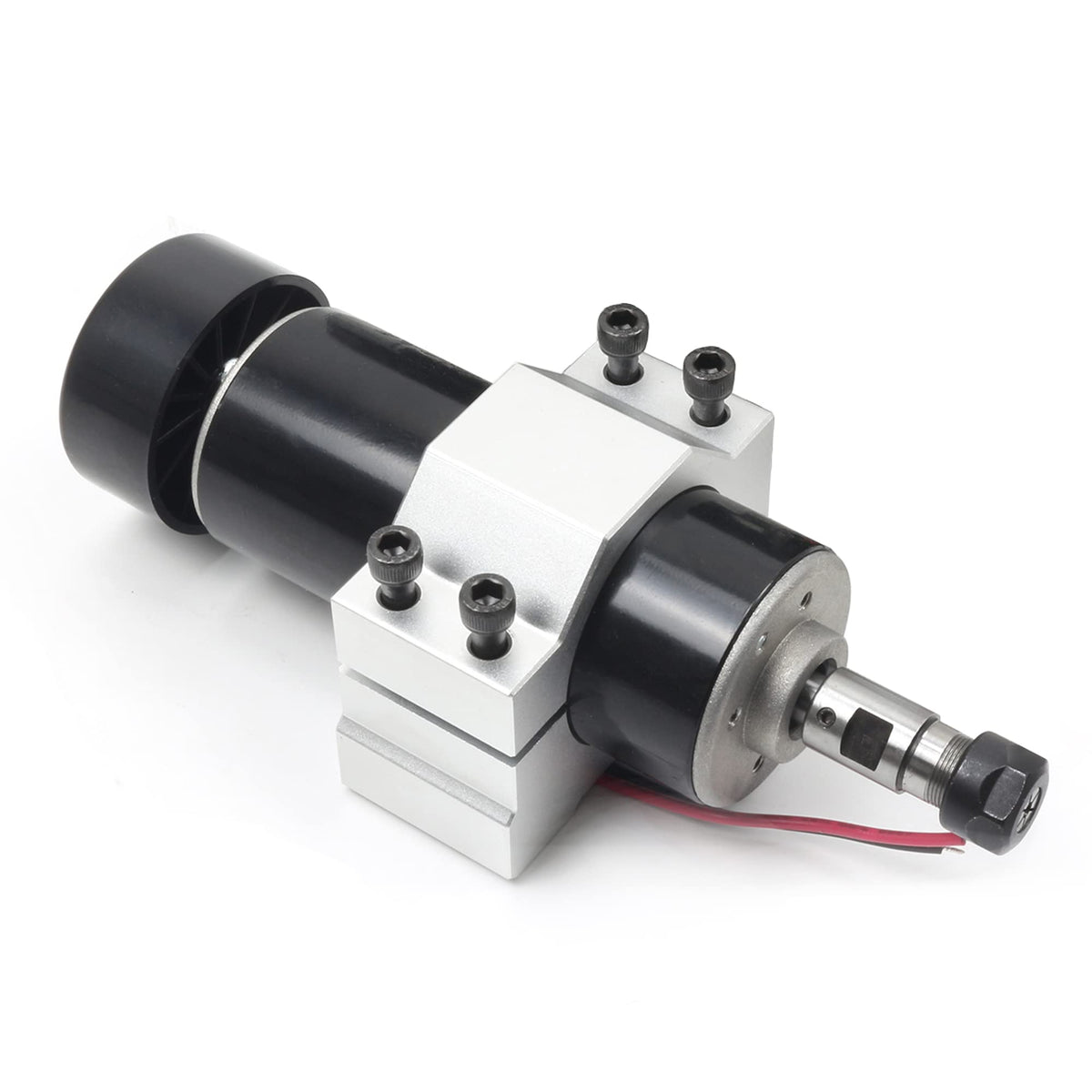

RATTMMOTOR 500W CNC Air Cooled Spindle Motor ER11 12-100VDC

Key features

• Power: 500W, Air cooling method, working voltage: 12-100VDC.

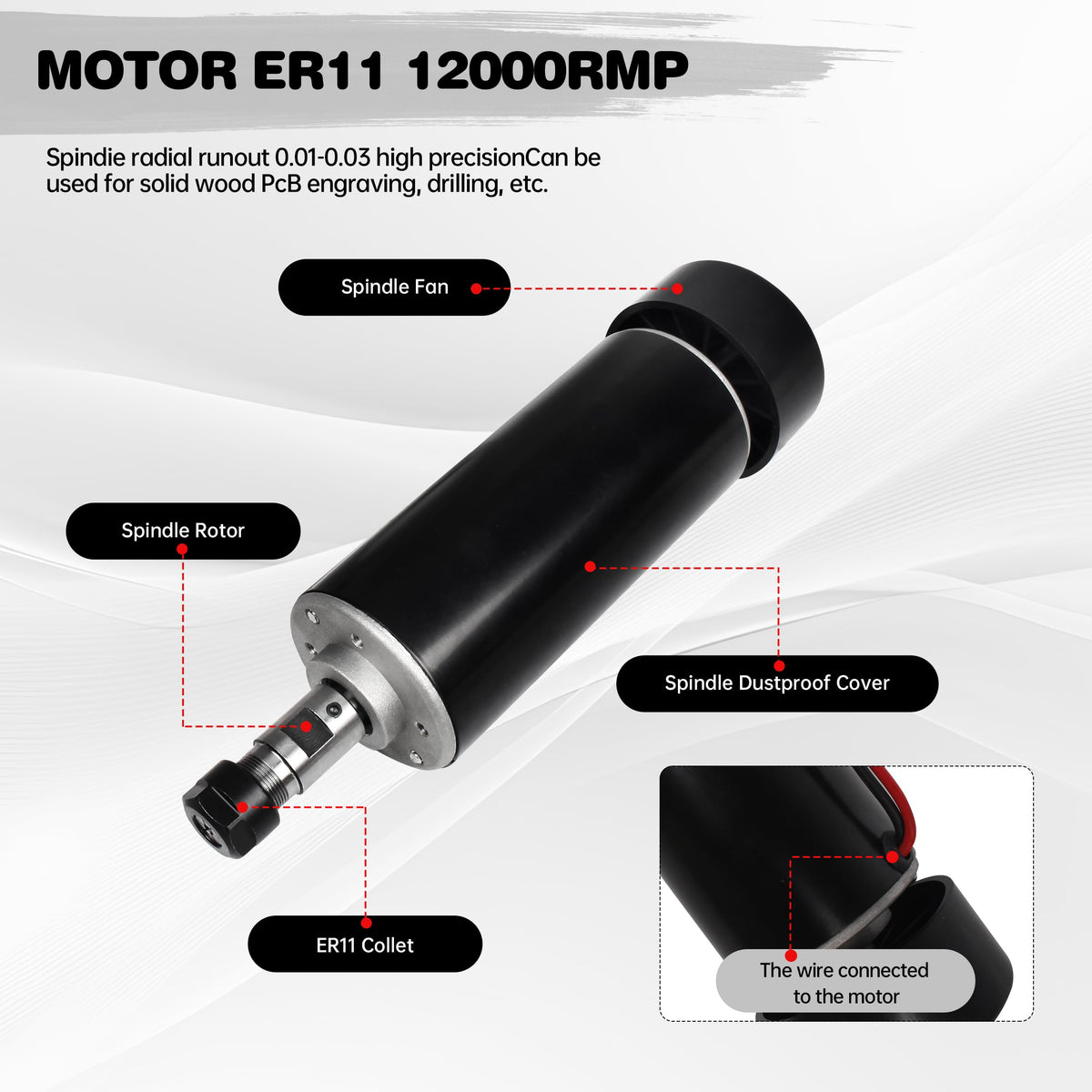

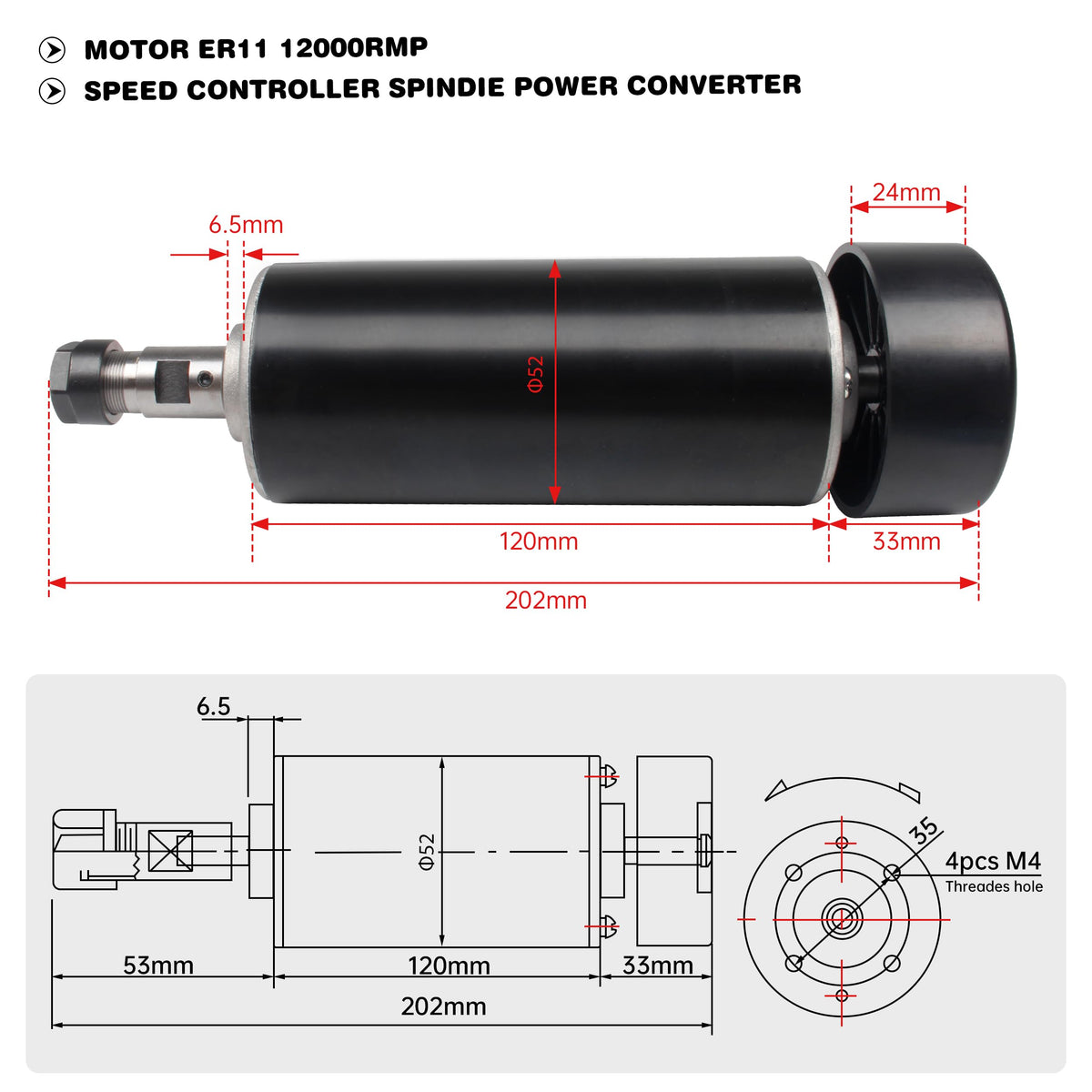

• Idling Speed: 2000-12000r/min; Torque：0.5NM; Chuck part length: 45MM; Diameter: 52mm; Insulation resistance: >2 megohms; Insulation dielectric strength: 400V; Spindle radial runout 0.01-0.03 high precision.
• Note: This motor has quiet operation, small volume and high speed, and the rear end of the motor is reinforced with a cooling fan, which can be safely worked for a long time!
• Can be used for solid wood PCB engraving, drilling, etc.
• 52mm Diameter spindle motor mount,compared with the aluminium profile fixture,the accuracy is much higher , and it is hard to deform.

Free shipping included. 30-day hassle-free returns.
